Setting Out and Building Masonry Structures

Module 5-Setting Out and Building Masonry Structures

Setting out is the critical first step in any masonry project, ensuring that the structure is built accurately according to design specifications. This process involves transferring measurements from architectural drawings to the ground or foundation, establishing reference points, and verifying alignment before construction begins. Proper setting out prevents costly errors, such as misaligned walls or uneven foundations, which can compromise structural integrity.

The process begins with establishing baseline measurements using tools like measuring tapes, laser levels, and string lines. Builders mark the corners and intersections of walls with pegs or chalk lines, checking for squareness using the 3-4-5 triangle method (a fundamental geometric principle). For larger projects, profile boards may be set up around the perimeter to maintain consistent reference points throughout construction. Once the outline is confirmed, foundation trenches are dug, and damp-proof courses (DPC) are installed to prevent moisture from rising into the masonry.

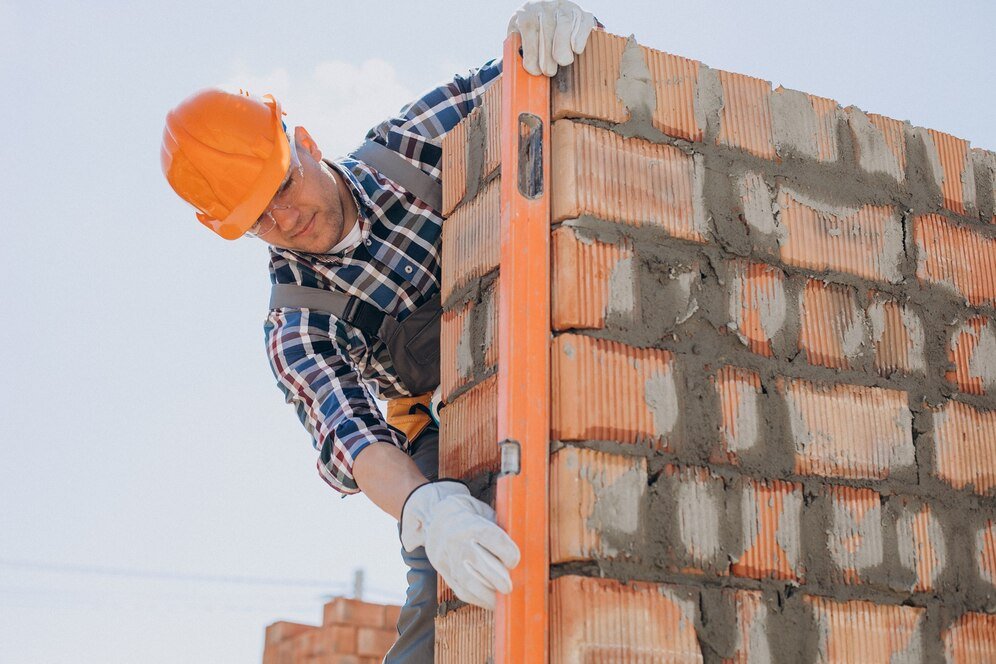

After setting out, the actual construction of masonry structures begins with laying the first course of bricks or blocks. This initial layer must be perfectly level and aligned, as any errors will compound as the wall rises. Builders use spirit levels, plumb bobs, and straightedges to ensure vertical and horizontal accuracy. For complex shapes, such as curved walls or arches, templates or formwork may be required to guide the masonry work.

When building piers, columns, or load-bearing walls, additional reinforcement, such as steel bars or cavity wall ties, is often incorporated to enhance strength. Lintels are installed above openings (doors and windows) to distribute weight, while expansion joints may be added in long walls to accommodate thermal movement. As the structure rises, regular checks for level and plumb are essential, with adjustments made by tapping bricks or blocks into place before the mortar sets.

Finally, finishing techniques, such as pointing or rendering, are applied to protect the masonry and improve its appearance. Proper curing of mortar is crucial to achieve maximum strength and durability. Whether constructing a simple garden wall or a multi-story building, meticulous setting out and precise masonry techniques ensure a stable, long-lasting structure that meets both functional and aesthetic requirements.

Conclusion

This foundational skill separates professional bricklayers from amateurs, as even minor errors in setting out can lead to significant structural problems. Mastery of these techniques is essential for anyone pursuing a career in bricklaying or masonry.
