Module 2: Advanced Measurement and Preparation

Precision Measuring for Custom Installations

Accurate measurements are critical for ensuring proper fit, performance, and weather resistance of fenestration products. Mistakes at this stage can lead to air/water leaks, operational issues, and costly rework.

Key Measurement Steps:

1. Rough Opening Dimensions

• Measure width (left to right) and height (top to bottom) at multiple points.

• Account for out-of-square openings by recording the narrowest width and shortest height.

• Follow manufacturer specifications for required clearances (typically ¼" to ½" larger than the unit).

2. Check for Level, Plumb, and Square

• Use a 4-foot level to verify:

• Level (horizontal surfaces).

• Plumb (vertical surfaces).

• Measure diagonals (corner to corner) to confirm squareness (should be equal within ¼").

3. Depth Measurement

• Ensure the wall thickness accommodates the window/door frame (especially important for retrofit installations).

4. Special Considerations

• Bow or warp in framing? Shim or plane high spots.

• Existing siding or cladding? Measure reveal depth for proper flashing integration.

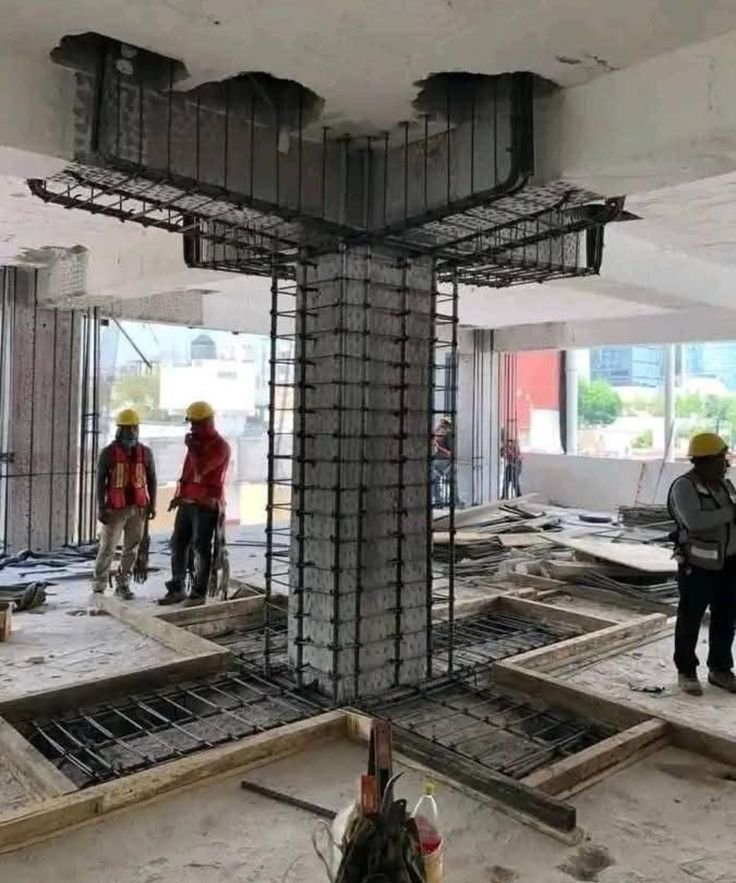

Structural Assessment (Rough Openings, Load-Bearing Considerations)

Before installation, evaluate the structural integrity of the rough opening to ensure it can support the fenestration unit.

1. Rough Opening Requirements

• Must be structurally sound, free of rot, mold, or insect damage.

• Header support – Verify adequate load-bearing capacity (especially for large windows/doors).

• Standard rule: Openings wider than 3-4 ft require a lintel or load-bearing header.

• Cripple studs & king studs must be properly spaced (per IRC/IBC codes).

2. Load-Bearing Considerations

• Load-bearing walls require temporary supports (if modifying openings).

• Masonry openings may need steel lintels for reinforcement.

• Large or heavy units (e.g., sliding glass doors) may require additional framing reinforcement.

3. Common Structural Issues & Fixes

• Settling or shifting: Shim or reframe as needed.

• Rot or water damage: Replace compromised wood before installation.

• Masonry deterioration: Patch or reinforce with epoxy or new mortar.

Substrate Preparation (Masonry, Wood Framing, Metal Framing)

The substrate (the surface where the fenestration unit is installed) must be properly prepared to ensure a secure, weathertight fit.

1. Wood Framing Preparation

• Check for:

• Warped, split, or rotted studs (replace if damaged).

• Proper nailing surfaces for flange or brickmold attachment.

• Steps:

• Apply a weather-resistant barrier (WRB) over sheathing (e.g., Tyvek).

• Install flashing tape at sill before setting the window.

2. Masonry (Brick/Block/Concrete) Preparation

• Check for:

• Cracks, spalling, or uneven surfaces.

• Proper anchorage points (sleeve anchors, concrete screws).

• Steps:

• Use non-corrosive fasteners (stainless steel or galvanized).

• Pre-drill holes for anchors to prevent cracking.

• Apply masonry sealant around the perimeter for water resistance.

3. Metal Framing (Commercial/Steel Stud) Preparation

• Check for:

• Proper gauge (typically 20-gauge or thicker for structural support).

• Shim attachment points if needed (metal shims or adjustable brackets).

• Steps:

• Use self-tapping screws for secure attachment.

• Ensure thermal breaks to prevent condensation (especially in cold climates).
