Module 5: Fire Safety and Compliance

1. Fire Engineering Principles

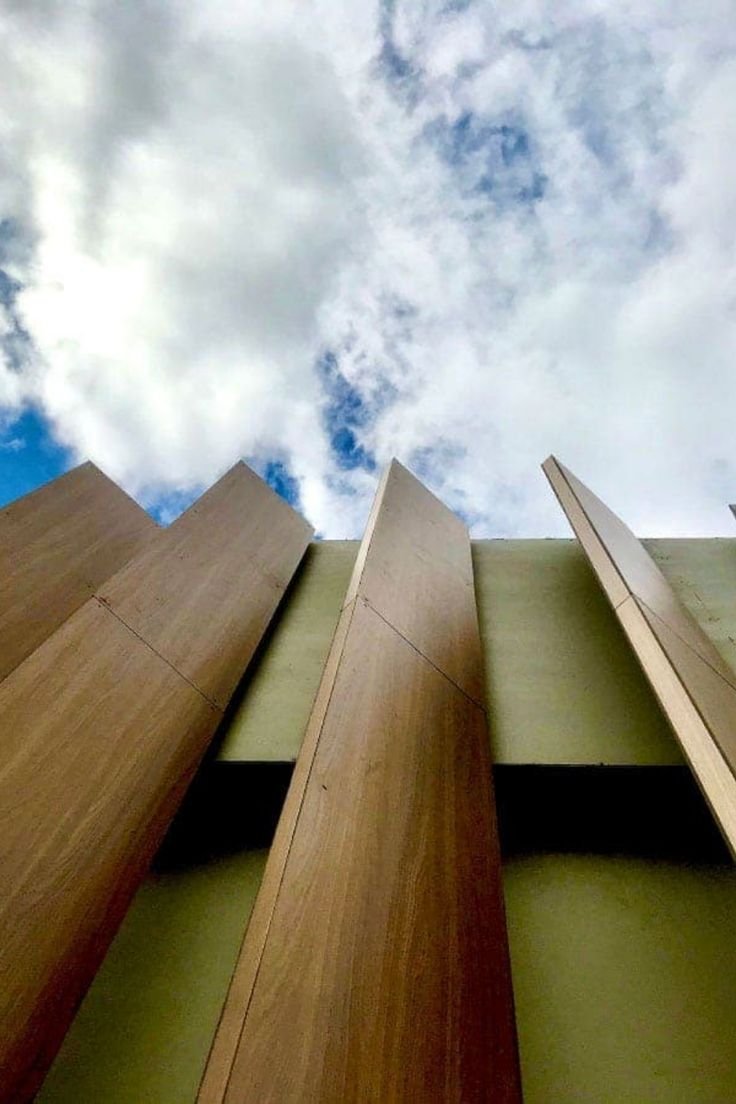

Cladding systems play a critical role in fire safety, particularly in high-rise buildings where external fire spread can be catastrophic. Understanding fire dynamics and mitigation strategies is essential for compliance and life safety.

A. Fire Spread via Façades

1. Mechanisms of Fire Propagation:

• Direct Flame Contact: Combustible cladding (e.g., ACM-PE) ignites and spreads flames vertically.

• Cavity Effect: Unprotected gaps between cladding and structure create chimney-like airflow, accelerating fire spread.

• Melting & Droplet Formation: Some materials (PE cores) melt, dripping flaming debris and igniting lower floors.

2. Fire Containment Systems:

• Cavity Barriers:

• Fire-resistant materials (mineral wool, intumescent strips) installed horizontally and vertically to block flame/smoke spread.

• Required at floor junctions, window perimeters, and every 10–12m (UK Building Regs).

• Fire Stops:

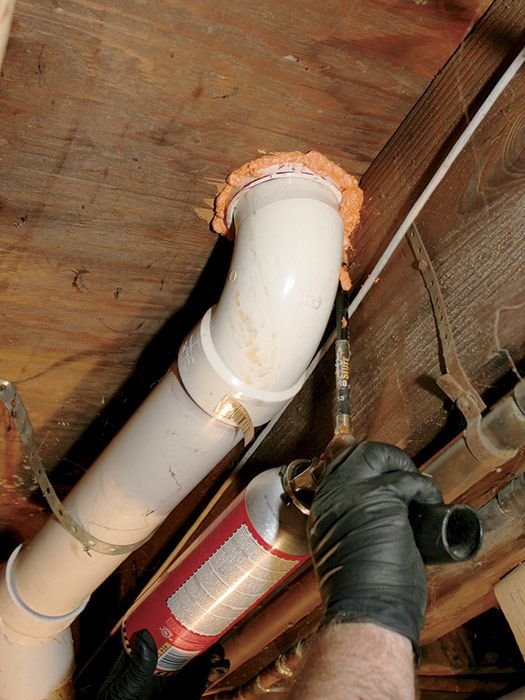

• Seal gaps around penetrations (pipes, cables) with intumescent sealants or fire-rated mortars.

3. Role of Cladding in Compartmentation:

• Non-Combustible Cladding (A1/A2-rated): Maintains fire compartment boundaries.

• Combustible Cladding (B–F rated): Requires additional sprinklers/fire barriers to compensate.

• Curtain Wall Systems: Must integrate with spandrel panels to prevent floor-to-floor fire spread.

2. Post-Installation Testing & Remediation

Even properly installed cladding must be verified for fire safety, and non-compliant systems require urgent remediation.

A. Non-Destructive Testing (NDT)

1. Infrared Thermography (IRT):

• Detects thermal anomalies (missing insulation, air leaks, hidden voids).

• Used to identify defective fire barriers behind cladding.

2. Moisture Mapping:

• Capacitance meters or radiofrequency sensors find trapped moisture (can degrade fire barriers).

3. Endoscopic Inspections:

• Miniature cameras check cavity barriers without dismantling cladding.

B. Remediation Strategies for Non-Compliant Systems

1. Partial Replacement:

• Swap combustible cores (PE) with A2-rated mineral cores in ACM panels.

2. Overcladding:

• Install a non-combustible outer layer (e.g., ceramic rainscreen) over existing cladding.

3. Fire Barrier Retrofit:

• Add intumescent strips or cavity barriers post-installation.

4. Full System Removal:

• Required for high-risk buildings (e.g., Grenfell-style ACM-PE).

Key Fire Safety Standards

Key Takeaways

🔥 Cavity barriers are critical – they prevent "chimney effect" fire spread.
🔍 Post-installation testing (IRT, moisture mapping) ensures hidden defects are caught.
🛠️ Remediation options range from barrier retrofits to full recladding.
